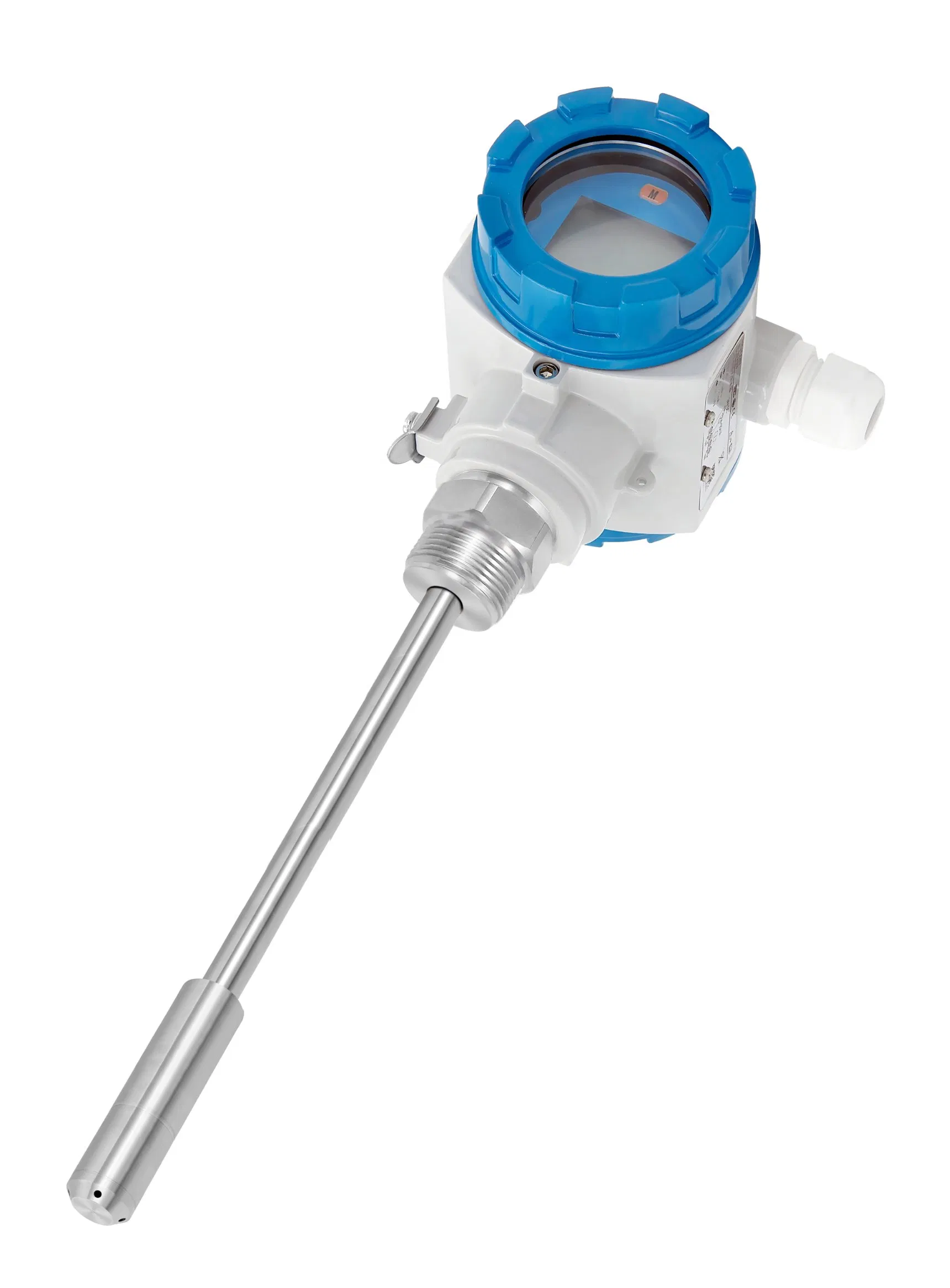

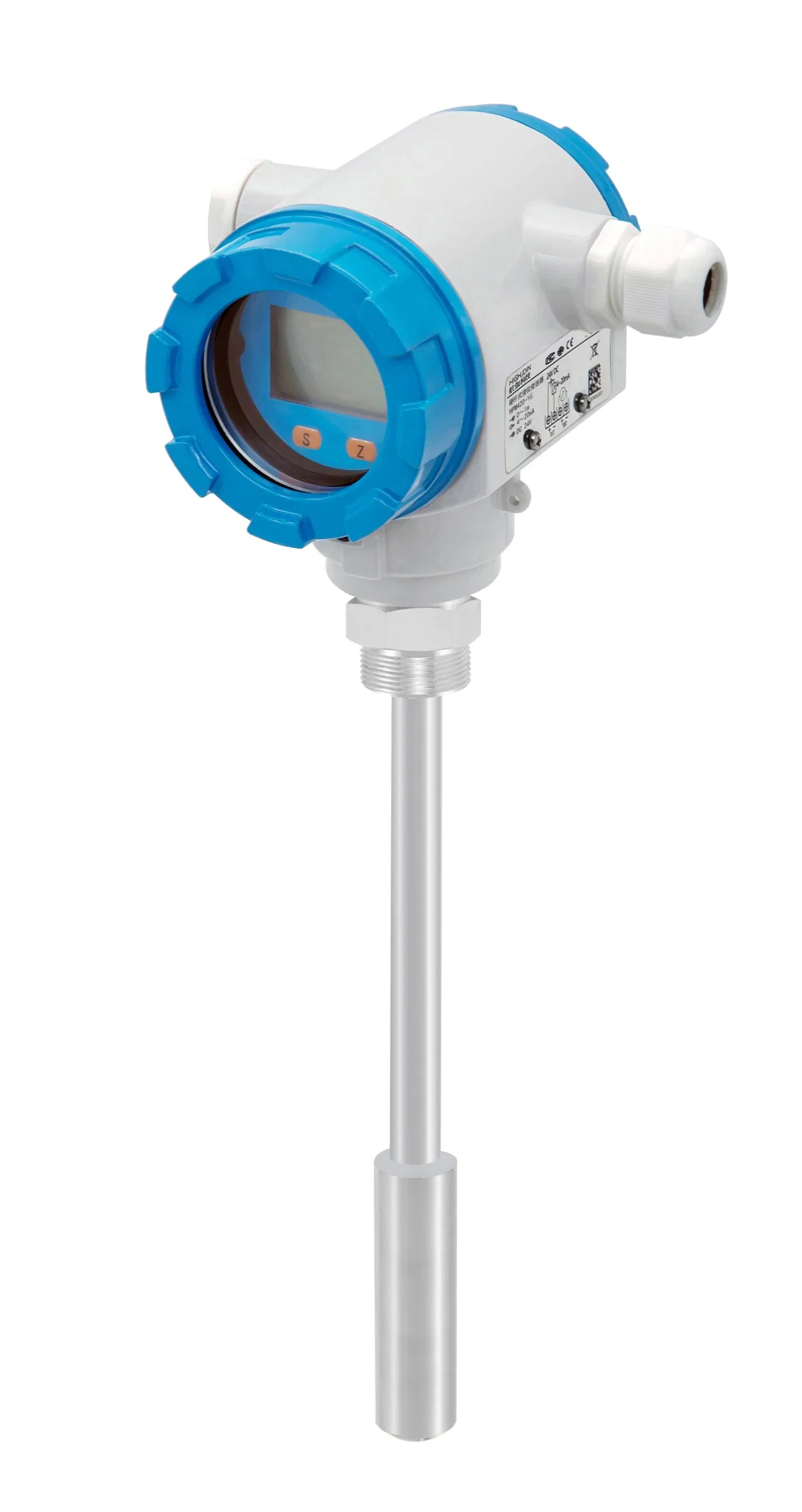

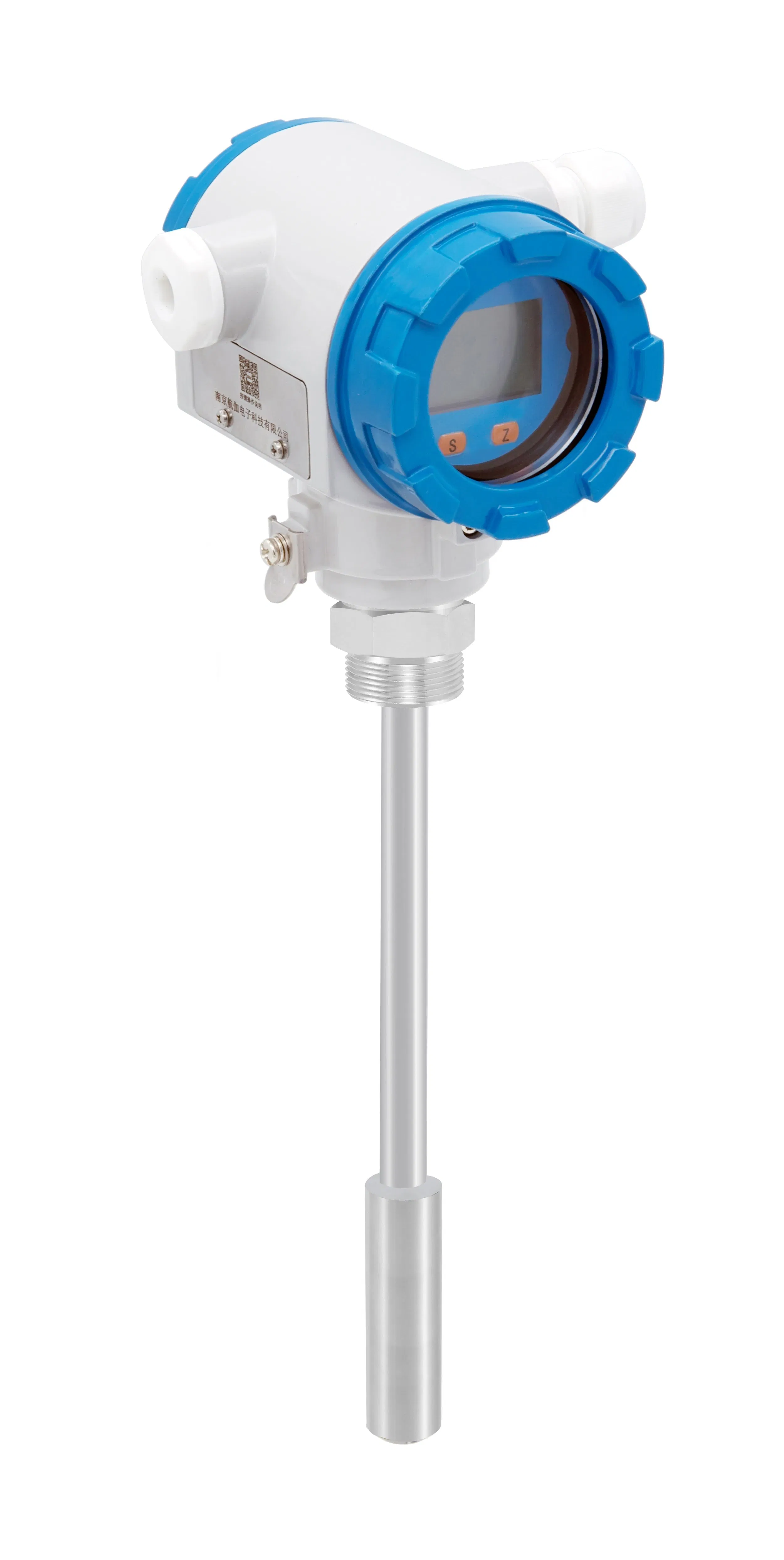

Rigid Rod Submersible Level Transmitter for Moving Mediums
USD 65,00 – 80,00
/ piece
Il prezzo varia per quantità e specifiche
| Q.tà min. | 2 piece |
| Disponibilità | 0 piece |
| Categoria | Electronics |
Garanzia commerciale
Consegna puntuale
Campione disponibile
Fornitore certificato
11
Anni
98%
Tasso risposta
24h
Tempo risposta
Descrizione prodotto
This HPM420-YG submersible level transmitter is designed for accurate level measurement in moving mediums. It features a silicon piezoresistive sensor with IP68 protection, offering high stability and reliability for industrial applications.
Specifiche tecniche
| Model NO. | HPM420-YG |
| Type | Silicon Piezoresistive Type |
| Structure Design | Input Type |
| Pressure Range | High Pressure |
| Display Type | LCD |
| Accuracy Grade | 0.5G |
| IP Rating | IP68 |
| Certification | CE |
| Customized | Customized |
| Sensor Type | Pressure Sensor |
| Pressure | 0~0.3...5mH2O |
| Over Pressure | 1.5 times the full scale |
| Accuracy | ±0.5%F.S. |
| Long-term Stability | ±0.2%FS/year |
| Supply | 24VDC |
| Output | 4-20mADC, 0~5VDC |
| Working Temp | -20~85℃ |
| Protection of Shell | IP68 |
| Transport Package | Carton |
| Trademark | HIGHJOIN |
| Origin | China |
| HS Code | 90262010 |
